• FusionServer 2488H V7 (2488H V7) is a 2U 4-socket rack server designed for the Internet Data Center (IDC), cloud computing, enterprise business, and telecom service applications.
• It is also ideal for various applications, such as databases, virtualization, and in-memory computing.
• 2488H V7 features high-performance computing, large-capacity storage, low power consumption, high reliability, easy management and deployment, and high virtualization application density.
High performance database (OLAP/OLTP), memory database, HPC, and high-density virtualization.
Consult
FusionServer 2488H V7 (2488H V7) is a 2U 4-socket rack server designed for the Internet Data Center (IDC), cloud computing, enterprise business, and telecom. It is also ideal for various applications, such as databases, virtualization, and in-memory computing. The 2488H V7 features high-performance computing, large-capacity storage, low power consumption, high reliability, easy management and deployment, and high virtualization application density.
High Efficiency, Stability, and Scalability
- 4 x 4th Gen Intel® Xeon® Scalable processors in 2U space, up to 60 x cores and 120 x threads perprocessor, with TDP up to 350 W.
- Up to 64 x DDR5 DIMMs, delivering up to 16 TB total memory capacity (calculated based on a maximum of 256 GB capacity per DDR5 memory module) and featuring high speed and availability.
- Up to 25 x 2.5" drives.
- Up to 8 x 2.5" NVMe SSDs, improving storage density and I/O performance.
- Up to 9 x standard expansion slots.
- 1 x GE/10GE/25GE/100GE OCP 3.0 NIC that supports orderly hot swap.
High Reliability and Security
- Heat pipe remote heat dissipation technology ensures reliable heat dissipation and stronger temperature adaptation, providing 50% better heat dissipation capability than a single heat sink.
- Unique AI memory fault self-healing ensures stable system running and reduces system downtime by 66%.
- RoT-based secure boot ensures security everywhere.
Efficient Energy Saving
- The unique algorithm is provided for the lowest power consumption of fans and CPUs, saving energy by up to 8% compared with the industry average.
- Industry-leading power supply technology for higher efficiency: Three core technologies improve power and efficiency, enabling the industry-leading power conversion rate and the power loss 12.5% lower than the industry average.
- Intelligent service awareness and dynamic load adjustment: The CPU working frequency is dynamically adjusted based on the actual service load.
Intelligent O&M
- Automatic version push and upgrades can be completed without onsite attendance, improving upgrade efficiency by 20 times.
- 75% streamlined deployment steps are performed by tools, improving deployment efficiency by 10 times.
- Supports takeover of all vendors' servers, automatic asset location identification, and real-time tracking, 100% accuracy for asset stocktaking.
| Form Factor | 2U rack server |
| Processor | 2 or 4 x 4th Gen Intel® Xeon® Scalable processors with TDP up to 350 W per processor |
| Chipset | Emmitsburg PCH |
| Memory | 64 x DDR5 DIMMs |

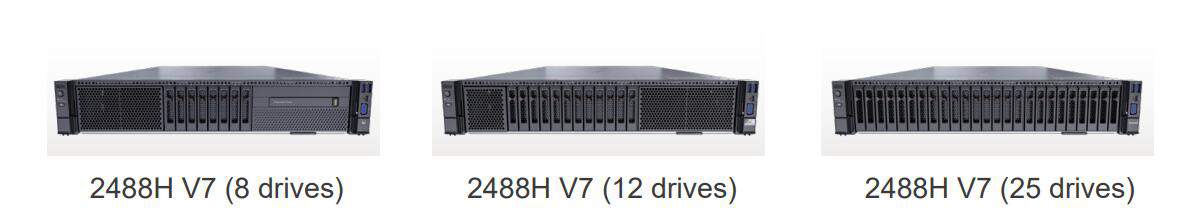

| Local Storage | Hot-swappable drives configurations: |
| • 8 x front 2.5″ SAS/SATA drives | |
| • 25 x front 2.5″ SAS/SATA drives | |
| • 4 x front 2.5″ SAS/SATA drives and 8 x NVMe SSDs | |
| Flash storage: 2 x M.2 SSDs, supporting hardware RAID | |
| RAID | RAID 0, 1, 10, 1E, 5, 50, 6, or 60; supercapacitors for cache data protection from power failures; |
| RAID level migration, drive roaming, self-diagnosis, and remote web-based configuration | |
| Network | Multiple network expansion capabilities |
| 1 x OCP 3.0 NIC, supporting hot swap | |
| PCIe Expansion | Up to 10 x PCIe slots, including 1 x FlexIO slot dedicated for the OCP 3.0 NIC and 9 x standard PCIe slots |
| Fan Module | 6 x hot-swappable counter-rotating fans in N+1 redundancy |
| PSU | 2 x hot-swappable Platinum/Titanium PSUs in 1+1 redundancy |
| • 900 W AC Platinum/Titanium PSUs (input: 100 V to 240 V AC, or 192 V to 288 V DC) | |
| • 1500 W AC Platinum PSUs | |
| 850 W (input: 100 V to 127 V AC) | |
| 1500 W (input: 200 V to 240 V AC, or 192 V to 288 V DC) | |
| • 1500 W 380 V HVDC PSUs (input: 260 V to 400 V DC) | |
| • 1200 W -48 V to -60 V DC PSUs (input: -38.4 V to -72 V DC) | |
| • 2000 W AC Platinum/Titanium PSUs | |
| 1800 W (input: 200 V to 220 V AC, or 192 V to 200 V DC) | |
| 2000 W (input: 220 V to 240 V AC, or 200 V to 288 V DC) | |
| 2150 W Titanium PSUs (input: 230 V to 240 V AC, or 230 V to 288 V DC) | |
| • 3000 W AC Titanium PSUs | |
| 2500 W (input: 200 V to 220 V AC, or 192 V to 200 V DC) | |
| 2900 W (input: 220 V to 230 V AC, or 200 V to 230 V DC) | |
| 3000 W (input: 230 to 240 V AC, or 230 to 288 V DC) | |
| Management | The iBMC chip integrates one dedicated management GE network port, providing comprehensive management features such as fault diagnosis, automatic O&M, and hardware security hardening. |
| • The iBMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0, provides a remote management user interface based on HTML5/VNC KVM; supports out-of-band management functions such as monitoring, diagnosis, configuration, Agentless, and remote control for simplified management. | |
| • It is optional to configure the FusionDirector management software that provides advanced management features such as five intelligent technologies, enabling intelligent, automatic, visualized, and refined management throughout the lifecycle. | |
| OS | FusionOS, Microsoft Windows Server, SUSE Linux Enterprise Server, VMware ESXi, Red Hat Enterprise Linux, Oracle, Ubuntu, and openEuler |
| Security | Power-on password, administrator password, Trusted Platform Module (TPM) 2.0, security panel, secure boot, and chassis cover opening detection |
| Operating Temperature | 5°C to 45°C (41°F to 113°F), compliant with ASHRAE Classes A1/A2/A3/A4 |
| Certification | CE, UL, CCC, FCC, VCCI, and RoHS |
| Installation Suite | L-shaped guide rails, adjustable guide rails, and holding rails |
| Dimensions (H x W x D) | Chassis with 2.5″ drives: 86.1 mm x 447 mm x 898 mm (3.39 in. x 17.60 in. x 35.35 in.) |
