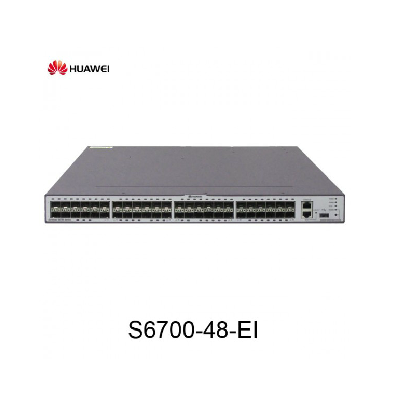

Huawei S6700 series 10G fiber Ethernet Switch

The S6700 series switches (S6700s) are next-generation 10G box switches. The S6700 can function as an access switch in an Internet data center (IDC) or a core switch on a campus network.

Consult

Huawei S6700 series 10G fiber Ethernet Switch

Product Description

The S6700 has industry-leading performance and provides up to 24 or 48 line-speed 10GE ports. It can be used in a data center to provide 10 Gbit/s access to servers or function as a core switch on a campus network to provide 10 Gbit/s traffic aggregation. In addition, the S6700 provides a wide variety of services, comprehensive security policies, and various QoS features to help customers build scalable, manageable, reliable, and secure data centers.


Image Details








Specification

Item S6700-24-EI S6700-48-EI
Port 24* GE SFP/10 GE SFP+ ports 48* GE SFP/10 GE SFP+ ports
MAC address table 128K MAC address entries MAC address learning and aging Static, dynamic, and blackhole MAC address entries Packet filtering based on source MAC addresses
VLAN 4K VLANs Guest VLAN and voice VLAN VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports 1:1 and N:1 VLAN Mapping QinQ and selective QinQ
IPv6 features Neighbor Discovery (ND) PMTU IPv6 ping, IPv6 tracert, and IPv6 Telnet 6to4 tunnel, ISATAP tunnel, and manually configured tunnel ACLs based on the source IPv6 address, destination IPv6 address, Layer 4 ports, or protocol type MLD v1/v2 snooping
multicast Static Layer 2 multicast MAC address MAC-based multicast forwarding IGMP snooping and IGMP fast leave Multicast VLAN MLD snooping IGMP proxy Controllable multicast Port-based multicast traffic statistics IGMP v1/v2/v3 PIM-SM, PIM-DM, and PIM-SSM MSDP
Input voltage AC: Rated voltage range: 100 V to 240 V AC, 50/60 Hz Maximum voltage range: 90 V to 264 V AC, 50/60 Hz DC: Rated voltage range: –48 V to –60 V, DC Maximum voltage range: –36 V to –72 V, DC
Dimensions (W x D x H) 442 mm x 420 mm x 43.6 mm
Power consumption 153W 240W

Specifications

S6720-30C-EI-24S-AC
S6720-30C-EI-24S-DC

S6720-54C-EI-48S-AC
S6720-54C-EI-48S-DC

S6720S-26Q-EI-24S-AC
S6720S-26Q-EI-24S-DC

Switching Capacity

2.56 Tbit/s

2.56 Tbit/s

2.56 Tbit/s

Forwarding Performance

720 Mpps

1,080 Mpps

480 Mpps

Fixed Ports

24 x 10 GE SFP+, 2 x 40 GE QSFP+ ports

48 x 10 GE SFP+, 2 x 40 GE QSFP+ ports

24 x 10 GE SFP+, 2 x 40 GE QSFP+ ports

Extended Slot

One extended slot for 4 x 40 GE QSFP+ interface card

One extended slot for 4 x 40 GE QSFP+ interface card Not supported

MAC Address Table

288k MAC address entries

MAC address learning and aging

Static, dynamic, and black hole MAC address entries

Packet filtering based on source MAC addresses

IPv4 Routing

Static routing, RIPv1, RIPv2, ECMP, and URPF

OSPF, IS-IS, and BGP

VRRP

Policy-based routing

IPv6 Routing

Static route

RIPng

OSPFv3

BGP4+

ISISv6

Multicast

Static Layer 2 multicast MAC address

MAC-based multicast forwarding

IGMP snooping and IGMP fast leave

Multicast VLAN

MLD snooping

IGMP proxy

Controllable multicast

Port-based multicast traffic statistics

IGMP v1/v2/v3

PIM-SM, PIM-DM, and PIM-SSM

MSDP

MVPN

QoS/ACL

Rate limiting on packets sent and received by an interface

Packet re-direction

Port-based traffic policing and two-rate three-color CAR

Eight queues on each port

WRR, DRR, SP, WRR + SP, and DRR + SP queue scheduling algorithms

Re-marking of the 802.1p priority and DSCP priority

Packet filtering at Layer 2 to Layer 4, filtering out invalid frames based on the source MAC address, destination MAC address, source IP address, destination IP address, port number, protocol type, and VLAN ID

Rate limiting in each queue and traffic shaping on ports

Security

User privilege management and password protection

DoS attack defense, ARP attack defense, and ICMP attack defense

Binding of the IP address, MAC address, interface, and VLAN

Port isolation, port security, and sticky MAC

Blackhole MAC address entries

Limit on the number of learned MAC addresses

802.1x authentication and limit on the number of users on an interface

AAA, RADIUS, and TACACS authentications

SSH v2.0

Hypertext Transfer Protocol Secure (HTTPS)

CPU defense

Blacklist and whitelist

Interoperability

VLAN-based Spanning Tree (VBST) (interoperating with PVST, PVST+, and RPVST)

Link-type Negotiation Protocol (LNP) (similar to DTP)

VLAN Central Management Protocol (VCMP) (similar to VTP)

For detailed interoperability certifications and test reports, click HERE.
